In our previous article, “Why Do Crane Bridge and Trolley Wheel Flanges Grind Against Rails? (Causes & Solutions)”, we discussed the hidden damage caused by friction and stress. This concern is even more critical during ship mooring operations. Imagine a fully loaded tanker attempting to berth: if a mooring winch suddenly jams or a hydraulic pipe bursts, the vessel could drift, causing collisions, groundings, or severe injuries . The mooring equipment is a ship"s lifeline, and its reliability is key to port safety and efficiency.
Today, we"ll dive deep into marine mooring equipment to help you avoid the hidden traps that lead to costly PSC detentions .
1. The Power Heart: The Truth About Mooring Winches and Capstans
Mooring winches are the system"s powerhouse, heaving in and paying out lines. However, many shipowners face issues like insufficient hauling power or hydraulic oil leakage after prolonged use . For Very Large Crude Carriers (VLCCs) affected by tides and wind, a winch failure during berthing creates a dangerous situation .
As a professional mooring winch manufacturer, Wuxi ChuncoTech prioritizes hydraulic system stability. Our hydraulic mooring winches are manufactured to GB/T4446-1995 standards, featuring imported braked motors and high-quality planetary reducers. While we do not engage in R&D, we strictly select materials during production to ensure drum diameters range from 100 to 2000mm and rated pulls from 5.5 to 110kN, using solid manufacturing to handle harsh seas .
Capstans, the vertical drum machines on poop decks, provide vertical pulling force. A common issue is hydraulic oil pipe leakage due to aged seals in salty, humid environments . Our assembly process focuses on pipe protection and sealing craftsmanship to reduce on-site leakage troubles.
2. Guidance and Securing: The Overlooked Wear and Tear Culprits
Lines from winches first pass through fairleads and chocks, which act as "guide rails" changing direction and reducing friction. If fairlead rollers seize or housings crack, they rapidly chafe and damage ropes, leading to mooring line wear and breakage .
For simple components like ship chocks and Panama chocks, quality determines mooring line lifespan. Inferior chocks with rough edges cut into ropes like knives. Our pedestal rollers and rotating chocks feature (off-center) designs with smooth rotation, automatically adjusting to line tension to minimize friction and protect expensive mooring ropes .

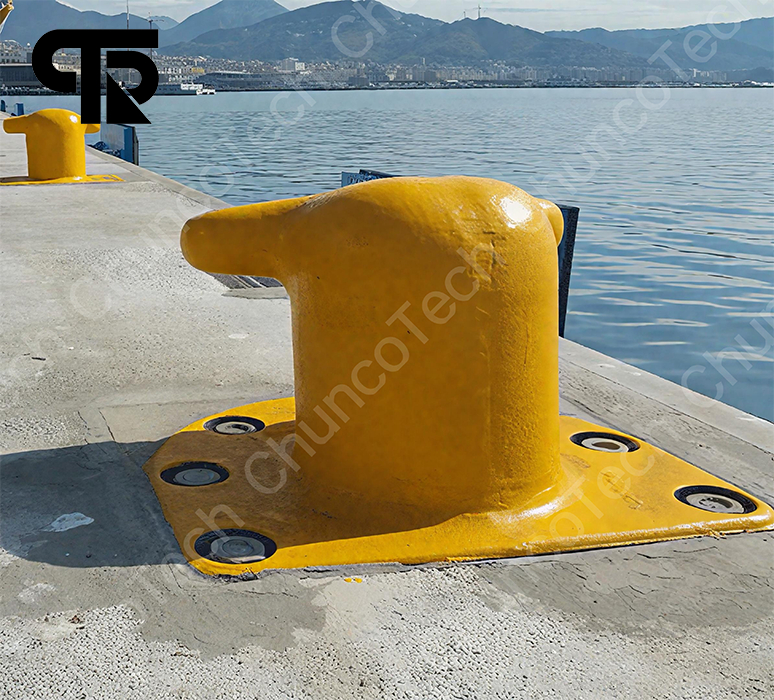

After guidance, lines are secured to bollards, the strong deck posts serving as anchor points. Severely corroded or cracked bollard bases can lead to catastrophic failure . Our marine bollards are made from high-quality cast or rolled steel, ensuring they resist deformation under immense strain. For installation, we recommend maintaining proper distance (1.5-2.5 meters) between bollards and fairleads for easy mooring line handling .
3. Safety Assist: The Importance of Stoppers and Details
During mooring, when lines transfer from winches to bitts, stoppers act as "temporary brakes" to prevent slipping. Corroded stopper eye plates or missing clutch pins are common mooring equipment deficiencies found during PSC inspections .
Wuxi ChuncoTech supplies complete mooring packages, including these small but vital hardware pieces, all with anti-corrosion surface treatment, ensuring reliability when you need it most. In mooring operations, the failure of a single small component can trigger a chain reaction .
Conclusion
From winch power to fairlead guidance and final bollard securing, every link in the chain matters. We understand that your greatest concern isn"t daily maintenance, but equipment failure under pressure, leading to delays or accidents.
Although Wuxi ChuncoTech does not engage in R&D, we focus on delivering mature mooring technology through precision manufacturing. Whether you need electric winches or hydraulic winches, for ocean giants or inland vessels, we are committed to providing reliable, durable deck machinery solutions. Visit our website at https://www.chuncotech.com/ to learn more about our ship anchor windlasses, mooring capstans, and complete mooring packages.
Ensure every berthing is rock-solid.
