Following our previous article, "RMG Cranes Use Rail-Mounted Travel and Automated Operation to Become the 'Intelligent Workhorse' for 'Stack-Six-Pass-Seven' Container Yard Operations," we have already seen how RMGs, with their rail-mounted travel and high-precision positioning, achieve high-intensity, fully automated batch stacking operations in automated container yards. However, when we shift our focus from "inside the yard" to "the connection zone between the quayside and the rear yard" – general cargo handling, large section lifting at shipyard outfitting wharves, auxiliary operations at bulk cargo terminals, and general-purpose lifting at multi-purpose terminals – a different question emerges: what is needed here is not "single-commodity batch operations," but rather "multi-purpose, flexible, all-round" general lifting capability.
The portal slewing crane (also known as a wharf crane or level luffing crane) is the classic answer to this "multi-scenario general lifting" challenge. With both a portal structure that allows trucks and trains to pass through and a slewing mechanism that provides 360-degree full coverage, and with the four actions of hoisting, luffing, slewing, and traveling working in coordination, it is one of the most frequently seen pieces of equipment at ports, shipyard outfitting wharves, and yard transfer operations. However, many portal slewing cranes on the market suffer from chronic issues such as "stiff slewing, jerky luffing, and low efficiency in multi-mechanism coordination," turning what should be smooth, flowing operations into a series of jolts and delays. Wuxi ChuncoTech's answer is: A true "all-round performer" is not "being able to do a little bit of everything," but rather "no matter what cargo it handles or under what conditions, it operates smoothly, quickly, and stably."
Above the Portal, Turning the World

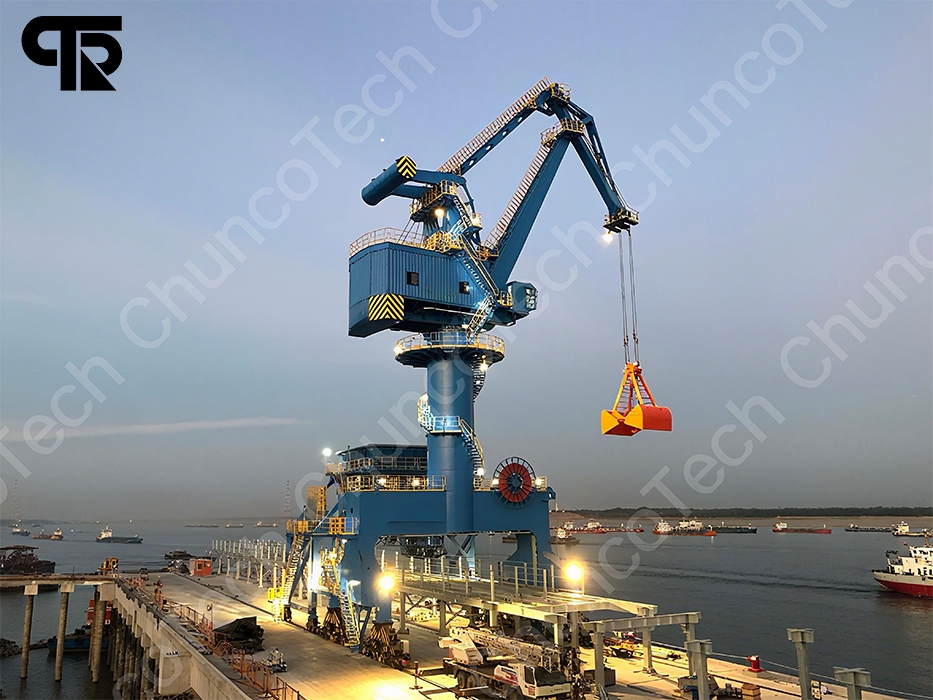

A portal slewing crane is most notably characterized by its portal frame structure – the portal. Freight vehicles can pass freely under the portal, achieving seamless integration of "ship unloading, under-portal passage, and rear yard stacking." Above the portal frame is mounted a turntable capable of 360-degree full slewing, carrying the jib, operator's cab, hoisting mechanism, and other components, expanding the crane's working range from a single point or line to a huge fan-shaped or even circular area.
The core value of a portal slewing crane lies in this: It is not designed for "single actions" or "extreme conditions," but rather for "high-frequency, continuous, multi-action compound operations between the quayside and the yard." A typical working cycle of a portal slewing crane is: hoist to grasp cargo → slew to above the portal → luff to adjust landing point → lower to release cargo → reverse slew → hoist again. In this cycle, the overlap and coordination of these four actions determine the crane's overall operational efficiency. In the design and manufacturing of portal slewing cranes, Wuxi ChuncoTech takes smooth heavy-load slewing, luffing compensation with horizontal load displacement, multi-mechanism coordination and compound actions, and structural durability with fatigue resistance as its four core technical areas.
Solving the Three "Efficiency Killers"
Operators and managers are most frustrated by three things: the slewing mechanism "fighting back," with severe impact during start and brake under heavy loads; the luffing action "nodding," with the load rising and falling significantly during luffing; and the four mechanisms – hoisting, luffing, slewing, and traveling – "working independently," unable to perform compound actions.
1.Heavy-Load Slewing and Smooth Drive: We use three-row roller slewing rings paired with variable frequency electric drives or hydraulic motors to achieve smooth start, uniform rotation, and precise braking under heavy loads. Slewing cushion valves and anti-sway control algorithms automatically optimize torque output during start and stop phases, eliminating "nodding" and "fishtailing," keeping the load level and stable throughout the slew.
2.Luffing Compensation and Horizontal Load Displacement: On conventional portal slewing cranes, during luffing, the hook experiences significant vertical rise and fall as the jib angle changes. Wuxi ChuncoTech's portal slewing cranes come standard with a luffing compensation system, achieving horizontal displacement of the hook during luffing through differential design of the wire rope drum or electronic compensation algorithms, with almost no vertical load fluctuation. Operators can perform luffing operations boldly and continuously without repeatedly fine-tuning the hoisting height.
3.Multi-Mechanism Coordination and Compound Actions: We use a PLC-based full variable frequency control system that supports simultaneous or selective compound actions of all four mechanisms – hoisting, luffing, slewing, and traveling. Operators can hoist or luff while slewing, with all four actions operating independently and executed in overlap. An optimized Wuxi ChuncoTech portal slewing crane can reduce single-cycle operation time by 20% to 30% compared to conventional equipment.
From Docks to Shipyards: Full-Scene Coverage of Portal Slewing Cranes
Wuxi ChuncoTech's portal slewing cranes are widely used in general cargo and bulk cargo handling at ports, large section lifting at shipyard outfitting wharves, container and steel transfer at rail freight stations, and large-component handling in storage yards. When giant gantry cranes handle "extreme tonnage inside dry docks," RTGs and RMGs handle "container yard operations," and portal slewing cranes handle "general-purpose lifting from docks to yards," Wuxi ChuncoTech builds for its customers a complete lifting capability map ranging from dry docks to docks, from yards to workshops, and from containers to general cargo.
Choosing Wuxi ChuncoTech means you receive not just a portal slewing crane, but a mature solution validated by hundreds of port and shipyard projects. All our products are mature models already in volume production with highly matched four mechanisms. Whether you need a high-efficiency portal slewing crane for a new general cargo terminal or a large-tonnage portal slewing crane for a shipyard outfitting wharf, please visit our website at https://www.chuncotech.com/ to obtain a professional solution for efficient dock-to-yard lifting.
