Following our previous article, "Ship Loaders Use Continuous and Efficient Operation to Open the 'Golden Throat' of the Loading Process for Bulk Cargo Terminals," we have already seen how ship loaders at bulk cargo terminals continuously load cargo into ship holds at rates of thousands of tons per hour. However, whether ship unloaders, ship loaders, or the giant gantry cranes, portal slewing cranes, overhead cranes, and floating dock cranes introduced earlier – all of these lifting devices share a common core load-bearing component: wire rope. Hoisting, luffing, tractive pulling, securing… behind every lifting operation, it is the wire rope that silently bears the entire load. If a wire rope fails, the consequences range from operational interruption to equipment destruction and even loss of life.

Wire rope is precisely this "invisible yet most critical" element. It is the lifeline of lifting equipment – the only link connecting the hook to the hoisting mechanism. However, many wire ropes on the market suffer from shortcomings such as "poor wear resistance, short fatigue life, poor rotation-resistant performance, and difficulty detecting broken wires," leaving equipment managers constantly anxious. Wuxi ChuncoTech's answer is: A true "lifeline" is not "how high the labeled strength is," but rather "how reliably it maintains its remaining service life under harsh conditions of repeated bending, crushing, and abrasion."

Wire Rope: The "Invisible Backbone" of Lifting Equipment

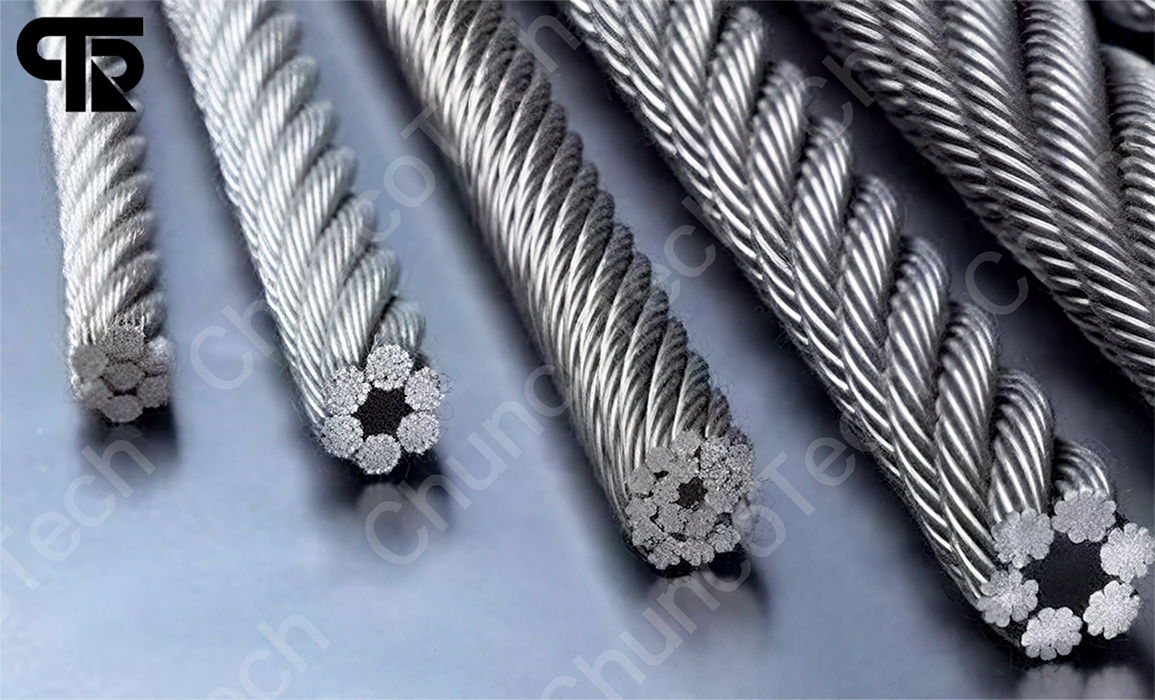

Wire rope is a helical bundle of wires formed by spirally twisting multiple strands of high-quality carbon steel wires around a core (fiber core or steel core) according to specific stranding patterns. Its basic structure consists of three main parts: wires, strands, and core. The wires provide strength and wear resistance; the strands are the basic units of the wire rope; the core provides support and serves as a reservoir for lubrication. Based on the stranding direction, wire ropes can be classified as regular lay (wires twisted in the opposite direction to the strands) or lang lay (wires twisted in the same direction as the strands). Based on the contact pattern between wires, they can be classified as point contact, line contact, or sealed (full contact) . Based on the strand cross-sectional shape, they can be classified as round strand and shaped strand (such as triangular strand and oval strand).

Compared to the various complete lifting equipment units introduced in the previous fifteen articles, wire rope – as a critical basic component – has its core value in this: It is not the "complete machine," yet it determines the safety and service life of the complete machine. The hoisting wire rope of a large ship unloader must withstand hundreds of cycles of bending, crushing, and impact every day, with cumulative stress cycles reaching millions or even tens of millions. If the wire rope were to break suddenly during operation, the consequences would be catastrophic. In the selection, inspection, and supporting services for wire ropes, Wuxi ChuncoTech takes fatigue resistance design, wear performance, rotation-resistant characteristics, broken wire detection, and life prediction as its five core areas of focus, ensuring that every meter of wire rope is a lifeline that can "pull the load, withstand the stress, and have its condition visible."

Solving the Three "Safety Anxieties" of Wire Rope Applications

In the daily use of lifting equipment, equipment managers and operators worry most about three things: excessive wear of the wire rope, leading to frequent replacement and high costs; the appearance of internal broken wires that are difficult to detect externally, posing a risk of sudden fracture; and wire rope rotation and kinking, causing load rotation and difficult operation. Wuxi ChuncoTech resolves these "safety anxieties" with the following professional services and technical guarantees:

1.Selection Optimization and Anti-Fatigue Wear-Resistant Design: The service life of a wire rope depends largely on whether the selection matches the operating conditions. Based on parameters such as the equipment's lifting height, sheave diameter, drum diameter, duty classification, and environmental corrosiveness, we recommend the optimal wire rope construction for each customer. For high-fatigue conditions (such as the hoisting mechanisms of ship unloaders and ship loaders), we recommend line contact or sealed wire ropes, which feature low inter-wire contact stress, good wear resistance, and long fatigue life. For high-corrosion environments (such as floating dock cranes), we recommend galvanized or stainless steel wire ropes. For high-temperature environments (such as steel mill cranes), we recommend steel core or even full-steel core constructions.

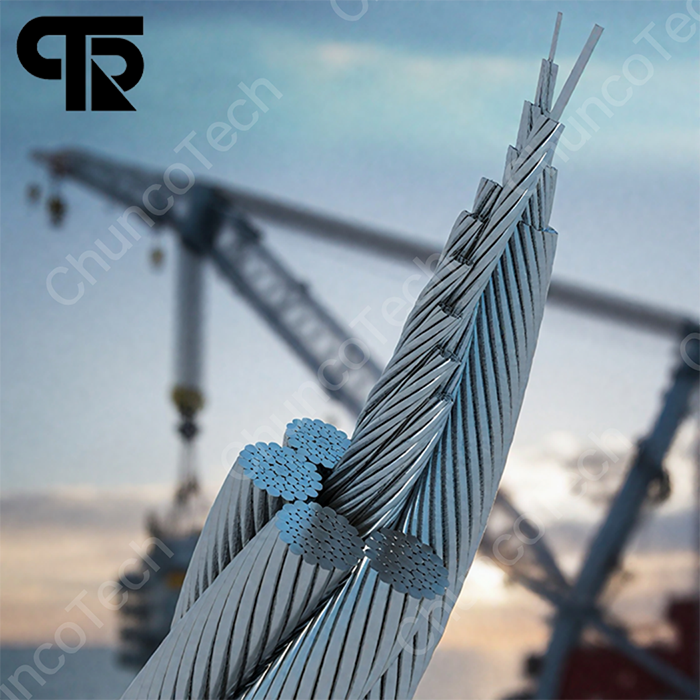

2.Rotation-Resistant Wire Rope and Kinking Control: Wire rope rotation (also known as spinning or untwisting) is a common problem in single-rope lifting systems, causing load rotation and wire rope structural damage. For single-rope lifting or long-travel hoisting applications, we recommend rotation-resistant wire ropes that use a multi-strand, alternately twisted layer design, allowing internal stresses to balance each other when the rope is under tension – resulting in almost no rotational torque. For existing equipment already in service, we also offer wire rope pre-stretching and stabilization treatment services to further reduce initial rotation and elongation.

3.Broken Wire Detection and Intelligent Life Management: Internal broken wires are the most dangerous and also the most hidden form of wire rope failure. Wuxi ChuncoTech offers a wire rope online monitoring system that uses magnetic flux leakage testing technology – without contact or stopping the machine – to scan the entire length of the wire rope in real time for damage such as broken wires, wear, corrosion, and deformation, automatically issuing alarms and generating inspection reports. Paired with a wire rope usage record management system, this achieves full lifecycle management from receipt, use, lubrication, inspection to retirement, allowing managers to have complete visibility into the "health status" of their wire ropes – completely eliminating "operation with hidden defects."

From Selection to Maintenance: Full Lifecycle Service for Wire Ropes

Wuxi ChuncoTech's wire rope products and supporting services are widely used in giant gantry cranes, portal slewing cranes, overhead cranes, rubber-tired gantry cranes, ship unloaders, ship loaders, floating dock cranes, knuckle boom cranes, straight boom cranes, stiff boom cranes, jib cranes – nearly all types of lifting equipment. Unlike the various complete equipment units introduced in the previous sixteen articles, wire rope – as a consumable critical safety component – requires equally critical attention to timely inspection, regular replacement, and proper lubrication. We not only supply high-quality wire ropes meeting ISO, DIN, GB, and other international/national standards, but also provide professional selection consulting, on-site inspection services, lubrication maintenance guidance, and spare parts inventory optimization solutions. When the complete equipment handles "lifting" and the wire rope handles "bearing the load," Wuxi ChuncoTech builds for its customers a complete safety assurance system ranging from complete machines to components, from selection to maintenance, from commissioning to retirement.

Choosing Wuxi ChuncoTech means you receive not just a wire rope, but a wire rope full lifecycle management solution validated by countless projects. We have no uncertainty from R&D trial-and-error; all our wire rope products are mature grades from world-class domestic and international steel mills. Whether you need hoisting wire rope selection for new equipment, wire rope replacement and upgrade for existing equipment, or need to establish a regular inspection and life management system for wire ropes, please visit our website at https://www.chuncotech.com/ to obtain a professional assurance solution for the lifeline of your lifting equipment.
