Following our previous article, "When 'Over-Water Operations' Become the Main Battlefield, How Do Floating Dock Cranes Make Ship Repair and Offshore Construction 'Feel Like Solid Ground'?" we have already seen how specialized cranes on floating dock platforms overcome tilting, swaying, and salt spray corrosion to perform precise lifts in ship repair and offshore construction. However, when we shift our focus from "floating platforms" back to "onshore extreme manufacturing" – ship sections hundreds of meters long in shipyards, integrated modules weighing tens of thousands of tons for offshore engineering platforms, steel containment vessels tens of meters in diameter for nuclear power plants, and rotors and stators weighing hundreds of tons for large hydropower stations – the nature of the problem changes fundamentally: what is needed here is not "overcoming platform sway," but rather "moving ultra-heavy objects over ultra-large spans with ultra-high precision."

The giant gantry crane (also known as a goliath crane or ultra-large portal crane) is the ultimate answer to this world-class challenge. It spans over a hundred meters across dry docks or assembly yards, lifts thousands or even tens of thousands of tons, and transforms "impossible tasks" into routine flow-line operations. However, the challenges of ultra-large-tonnage gantry cranes on the market remain acute: some have overly heavy structures leading to astonishing energy consumption, some exhibit unacceptable elastic deformation under extreme loads, and some suffer from multi-point coordination where each lifting point "works independently," causing component distortion or even damage. Wuxi ChuncoTech's answer is: A true "national heavy equipment" is not just "being able to lift," but rather "maintaining millimeter-level precision and rock-solid stability under extreme tonnage and extreme span."

The Steel Backbone That Spans Limits

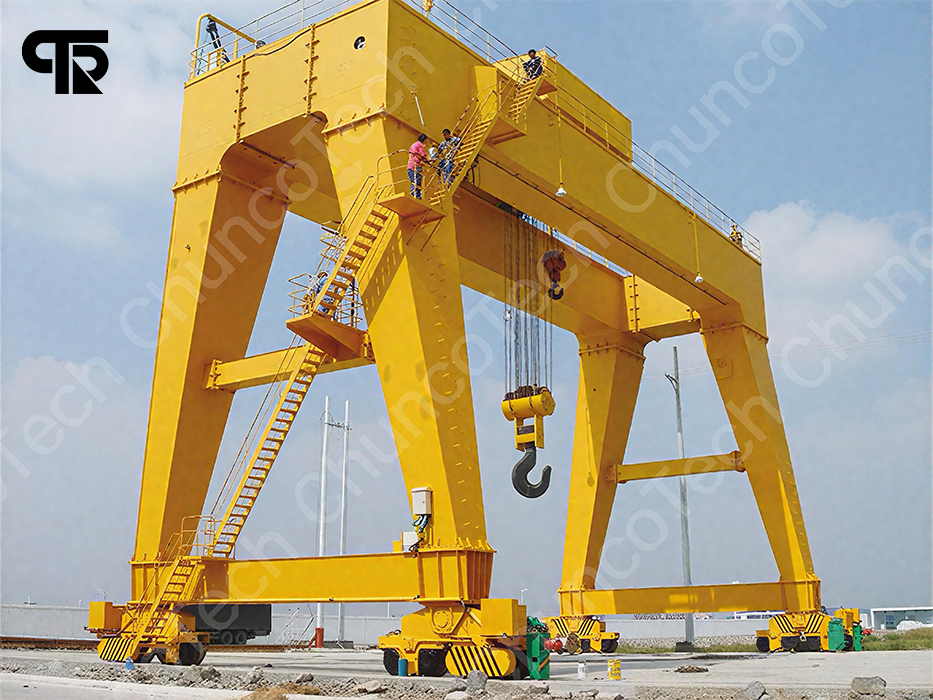

A giant gantry crane – in industry terms, typically refers to a large portal crane with a lifting capacity exceeding several hundred tons and a span exceeding several tens of meters. In the truly "giant" category, lifting capacities can reach thousands or even tens of thousands of tons, and spans can exceed 150 meters. Its structure consists of a main girder, legs, end beams, trolley(s), and travel mechanisms, forming a massive "door" shape. The main girder is the core load-bearing component, the full weight of the lifted load; the legs transfer the load to the ground rails; the trolley(s) travel along the main girder, enabling horizontal movement and precise positioning of heavy loads; the travel mechanisms move the entire crane longitudinally along the dry dock or yard.

Compared to the various types of cranes introduced in the previous twelve articles, the core differentiating value of a giant gantry crane lies in this: It is not designed for "general handling," but rather for "moving ultra-heavy objects with ultra-high precision over ultra-large spans." The lifting capacity of a 22,000-ton giant gantry crane (such as the "Honghai" model) is equivalent to lifting more than twenty thousand passenger cars in a single lift. Operations at this magnitude demand levels of structural rigidity, strength, stability, as well as travel mechanism synchronization and reliability, that are unattainable by ordinary cranes. In the design and manufacturing of giant gantry cranes, Wuxi ChuncoTech integrates finite element analysis and topology optimization, high-strength steel and pre-stressed camber, and multiple levels of safety redundancy and intelligent monitoring throughout the entire process, ensuring that every piece of equipment is a steel backbone that "holds up, earns trust, and lasts long."

Solving the Three "Extreme Challenges" of Giant Gantry Cranes

In ultra-large-tonnage lifting operations, project managers and operators worry most about three things: excessive deflection of the main girder under heavy loads causing horizontal deviation of the load beyond tolerance, coordination mismatch among multiple trolleys or multiple lifting points causing uneven force distribution or even distortion of the component, and asynchronous travel of the two sides causing rail gnawing, jamming, or even structural damage. Wuxi ChuncoTech transforms these "extreme challenges" into "routine operations" with the following three core technologies:

1.Ultra-High Rigidity Main Girder and Anti-Deformation Design: Main girder rigidity is the most core technical indicator of a giant gantry crane, directly determining the levelness of the lifted load at mid-span. We adopt truss-type or large-section box girder structures and achieve light weighting through finite element topology optimization – reducing weight by 15% to 25% compared to conventional designs while maintaining rigidity. Key load-bearing areas of the main girder use high-strength low-alloy steel (Q460D, Q690D grades) , and we implement pre-stressed camber during manufacturing to precisely offset elastic deformation under heavy loads. In 125% rated load static load testing, the end deflection of our main girder is far superior to international standards (typically controlled within 1/1000 of the span) , ensuring that the lifted load remains level at mid-span without needing secondary leveling.

2.Multi-Point Coordination and Intelligent Load Equalization Technology: Giant components often require two, four, or even eight lifting points to operate simultaneously. If the force on each lifting point is uneven, the result can range from component deformation to local instability or even falling accidents. Wuxi ChuncoTech equips its giant gantry cranes with an intelligent load equalization system. By monitoring the actual load at each lifting point in real time using high-precision pressure sensors or pin-type load cells, the PLC central processor automatically calculates and adjusts the hoisting height and speed of each trolley, ensuring that the force deviation at each lifting point is controlled within ±5%. No matter how the component's center of gravity shifts, the system "automatically levels" itself – operators can lift safely off the ground in one attempt without repeated adjustments.

3.Travel Synchronization and Anti-Rail-Gnawing Technology: For a giant gantry crane with a span exceeding 100 meters or even 150 meters, asynchronous travel of the two sides can lead to wheel rail gnawing, structural distortion, and travel jamming – and in severe cases, the crane can become stuck on the rails. We employ a multi-positioning fusion solution combining laser distance measurement + rotary encoders + gray code strips to achieve real-time comparison and closed-loop control of the travel positions of both sides, with synchronization error controlled within ±5 millimeters. At the same time, the wheels feature double-flange design paired with an automatic centralized lubrication system. Key drive components use redundant configuration (two or more drive units) – even if a single drive unit fails, the entire crane can still move at low speed to a safe location for maintenance, completely eliminating the risk of being "stuck dead."

From Shipbuilding to Nuclear Power: The "National Heavy Equipment" of Extreme Lifting

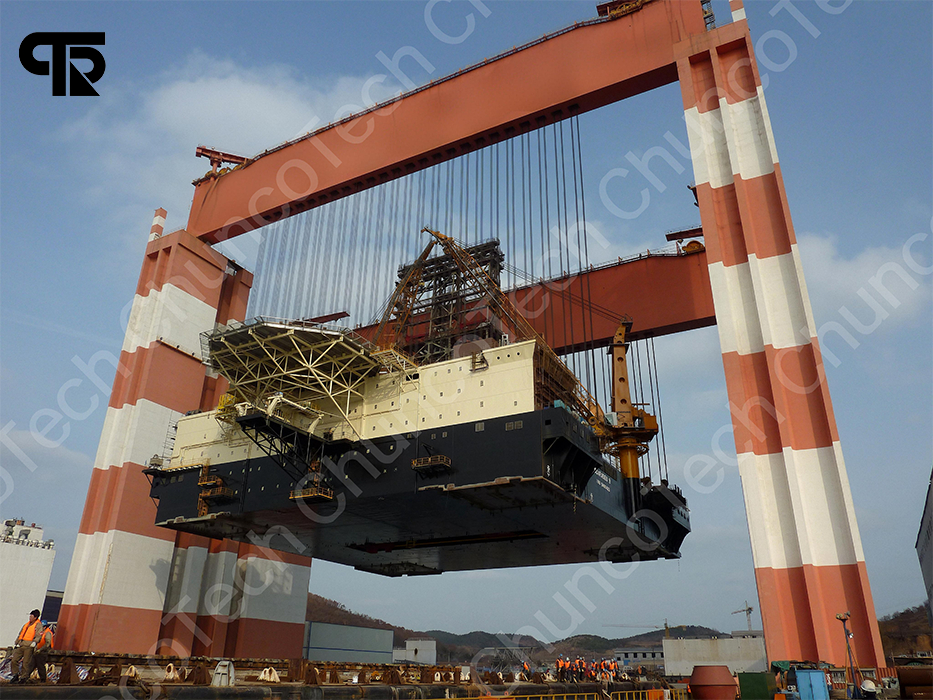

Wuxi ChuncoTech's giant gantry cranes are widely used in ultra-large ship section and superblock lifting, onshore fabrication and launching of offshore oil platforms (such as the 22,000-ton "Honghai" gantry crane), large structural module lifting for nuclear island buildings (such as the Lianjiang nuclear power 1,600-ton gantry crane with a net lifting height of 103 meters), ultra-large hydropower station unit installation, integral erection of large bridge steel towers and steel girders, and handling of large-scale aerospace test equipment – major national-level engineering projects. Compared to the floating dock cranes introduced in the twelfth article (which operate on floating waterborne platforms), the giant gantry crane has ultra-large span, ultra-high lifting capacity, multi-point coordination, and intelligent load equalization as its core advantages, filling the gap for "extreme tonnage, extreme dimensions, extreme precision" lifting needs. While other cranes handle "daily handling" and "conventional lifting," giant gantry cranes are responsible for "the birth of national heavy equipment and the execution of super-engineering projects."

Choosing Wuxi ChuncoTech means you receive not just a giant gantry crane, but a mature solution validated by multiple major national-level projects. We have no uncertainty from R&D trial-and-error; all our products are mature models already in volume production with highly refined technology and manufacturing processes. Whether you are expanding an ultra-large shipbuilding dry dock, building a new-generation nuclear power base, or developing an onshore integrated fabrication center for deep-sea oil platforms, please visit our website at https://www.chuncotech.com/ to obtain a professional solution for extreme-tonnage, extreme-span, extreme-precision lifting.
