Following our previous article, "Too Many 'Dead Corners' in Lifting Operations? Knuckle Boom Cranes Make 'Can't Reach, Can't Fit' a Thing of the Past," we have already seen how knuckle boom cranes, with their multi-joint folding booms, deliver hooks to "dead corners" that traditional equipment cannot reach – in narrow streets, construction foundation pits, ship decks, and other complex environments. However, when we shift our focus from "flexible maneuvering" to "extreme load-bearing" – ship sections hundreds of meters long and weighing thousands of tons in dry docks, giant domes requiring integral lifting at nuclear power plants, offshore oil platform onshore fabrication modules weighing tens of thousands of tons – the question is no longer "can we reach it," but rather "can we hold it, stabilize it, and lower it safely." At this magnitude of lifting, any "close enough" is unacceptable.

Giant gantry cranes (also known as goliath cranes or ultra-large portal cranes) are the ultimate answer born for this era of "extreme load-bearing." They span over a hundred meters, lift thousands or even tens of thousands of tons, and turn "impossible tasks" into daily operations. However, the challenges of ultra-large-tonnage gantry cranes on the market are equally acute: some have heavy structures leading to astonishing energy consumption, some exhibit unacceptable deformation under heavy loads, and some have multi-point coordination systems that "work independently," causing uneven force distribution on the lifted component. Wuxi ChuncoTech's answer is: A true "giant" is not just "able to lift," but rather "remains rock-solid and precise under extreme loads."

The Steel Backbone Spanning a Hundred Meters

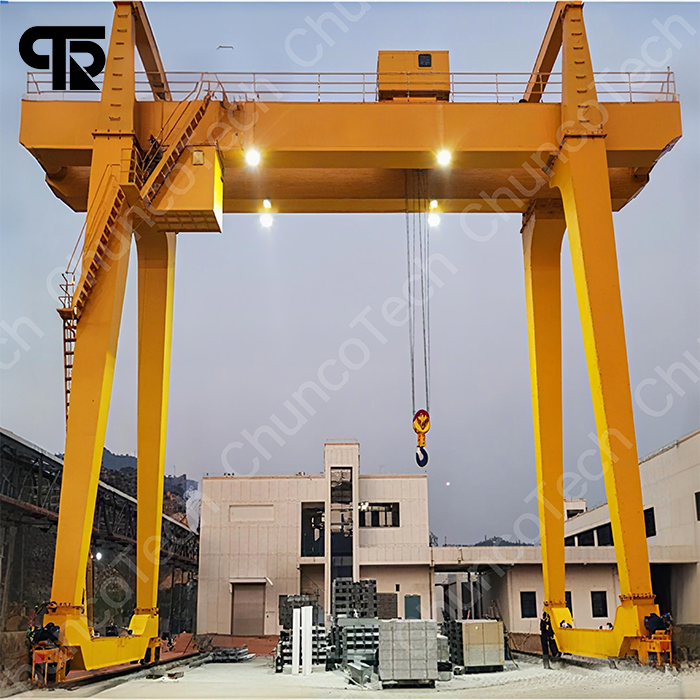

A giant gantry crane – in industry terms, typically refers to a large portal crane with a lifting capacity exceeding several hundred tons and a span exceeding several tens of meters. In the truly "giant" category, lifting capacities can reach thousands or even tens of thousands of tons. Its structure consists of a main girder, legs, end beams, trolley(s), and travel mechanisms, forming a massive "door" shape. The main girder is the core load-bearing component,support the full weight of the lifted load; the legs transfer the load to the ground rails; the trolley(s) travel along the main girder, enabling horizontal movement and precise positioning of heavy loads.

Compared to the various types of cranes introduced in the previous seven articles, the core differentiating value of a giant gantry crane lies in this: It is not designed for "moving heavy objects," but rather for "moving ultra-heavy objects over ultra-large spans with ultra-high precision." The lifting capacity of a 22,000-ton giant gantry crane (such as the "Honghai" model) is equivalent to lifting more than twenty thousand passenger cars in a single lift. Operations at this magnitude demand levels of structural rigidity, strength, stability, as well as travel mechanism synchronization and reliability, that are unattainable by ordinary cranes. In the design and manufacturing of giant gantry cranes, Wuxi ChuncoTech integrates finite element analysis optimization, high-strength steel applications, and multiple levels of safety redundancy throughout the entire process, ensuring that every piece of equipment is a steel backbone that "holds up and earns trust."

Solving the Three "Extreme Challenges" of Giant Gantry Cranes

In ultra-large-tonnage lifting operations, project managers worry most about three things: excessive deflection of the main girder under heavy loads causing horizontal deviation of the load beyond tolerance, coordination mismatch among multiple trolleys or multiple lifting points causing distortion of the component, and asynchronous travel of the two sides causing rail gnawing or even jamming. Wuxi ChuncoTech transforms these "extreme challenges" into "routine operations" with the following technologies:

1.Ultra-High Rigidity Main Girder and Anti-Deformation Design: Main girder rigidity is the most core technical indicator of a giant gantry crane. We adopt truss-type or box girder structures and achieve lightweight design through finite element topology optimization while ensuring rigidity. Key load-bearing areas of the main girder use high-strength low-alloy steel, and we implement pre-stressed camber during manufacturing to offset elastic deformation under heavy loads. In 125% rated load static load testing, the end deflection of our main girder is far superior to international standards, ensuring that the lifted load remains level even when positioned at mid-span.

2.Multi-Point Coordination and Load Equalization Technology: Giant components (such as ship sections and offshore platform modules) often require two, four, or even more lifting points to operate simultaneously. If the force on each lifting point is uneven, the result can range from component deformation to serious danger. Wuxi ChuncoTechequips its giant gantry cranes with an intelligent load equalization system. By monitoring the actual load at each lifting point in real time, it automatically adjusts the hoisting height and speed of each trolley, ensuring that the force deviation at each lifting point is controlled within ±5%. No matter how the component's center of gravity shifts, the system "automatically levels" itself, eliminating the need for operators to make repeated adjustments.

3.Travel Synchronization and Anti-Rail-Gnawing Technology: For a giant gantry crane with a span exceeding 100 meters, asynchronous travel of the two sides can lead to wheel rail gnawing, structural distortion, and travel jamming. We employ a multi-positioning fusion solution combining laser distance measurement + encoders + gray code strips to achieve real-time comparison and closed-loop control of the travel positions of both sides, with synchronization error controlled within ±5 millimeters. At the same time, the wheels feature double-flange design paired with an automatic lubrication system, significantly reducing wear and ensuring that the equipment travels smoothly and remains reliable for decades over kilometers of rails.

From Shipbuilding to Nuclear Power: The "National Heavy Equipment" of Extreme Lifting

Wuxi ChuncoTech's giant gantry cranes are widely used in large ship section and superblock lifting, onshore fabrication and launching of offshore oil platforms (such as the 22,000-ton "Honghai" gantry crane), large structural module lifting for nuclear island buildings (such as the Lianjiang nuclear power 1,600-ton gantry crane with a net lifting height of 103 meters), ultra-large hydropower station unit installation, and integral erection of bridge steel structures – major national-level engineering projects. Compared to the Rubber-Tired Gantry cranes (RTGs) introduced in the third article (which offer flexible relocation in yards) and the knuckle boom cranes introduced in the seventh article (which maneuver through complex environments), the giant gantry crane has ultra-large span, ultra-high lifting capacity, and multi-point coordination as its core advantages, filling the gap for "extreme tonnage, extreme dimensions" lifting needs. While other cranes handle "daily handling," giant gantry cranes are responsible for "the birth of national heavy equipment."

Choosing Wuxi ChuncoTech means you receive not just a giant gantry crane, but a mature solution validated by multiple major national-level projects. We have no uncertainty from R&D trial-and-error; all our products are mature models already in volume production with highly refined technology and manufacturing processes. Whether you are expanding an ultra-large shipbuilding dry dock, building a new-generation nuclear power plant, or developing an onshore fabrication base for deep-sea oil platforms, please visit our website at https://www.chuncotech.com/ to obtain a professional solution for extreme-tonnage lifting.
