Introduction
In our last post, we explored “Can a Crane Navigate Curved Tracks Smoothly?” and looked at the challenges of crane operation on curved rails. For the more common straight tracks, gantry cranes face a critical issue—unsynchronized movement of the two legs, commonly known as "going off track" or skewing. This not only accelerates equipment wear but can also create safety hazards. So, how can you effectively solve this issue and ensure your gantry crane always operates smoothly and precisely? This article will dive into several mainstream anti-skew solutions and show you how Wuxi ChuncoTech addresses this industry challenge with reliable, proven products.
Precision Anti-Skew: Understanding the Problem First
Skewing is a common phenomenon in gantry cranes, especially those with large spans. When the travel mechanisms on both sides experience displacement or speed differences, the girder becomes skewed. Minor skewing can cause wheel flange wear and rail abrasion, while severe skewing may lead to structural damage or even safety incidents. A reliable gantry crane anti-skew device is essential for detecting deviations in real time and automatically adjusting synchronization, ensuring safe and stable crane operation.
Mainstream Anti-Skew Technologies and Wuxi ChuncoTech’s Strengths
Several anti-skew solutions are available in the market today, each with its own characteristics.
Mechanical anti-skew systems represent the traditional approach. They rely on mechanical linkages to trigger limit switches. While simple in structure and low in cost, their accuracy is limited by mechanical cumulative errors, and the trigger positions are difficult to adjust precisely. In modern, high-efficiency applications, this solution has gradually become obsolete.

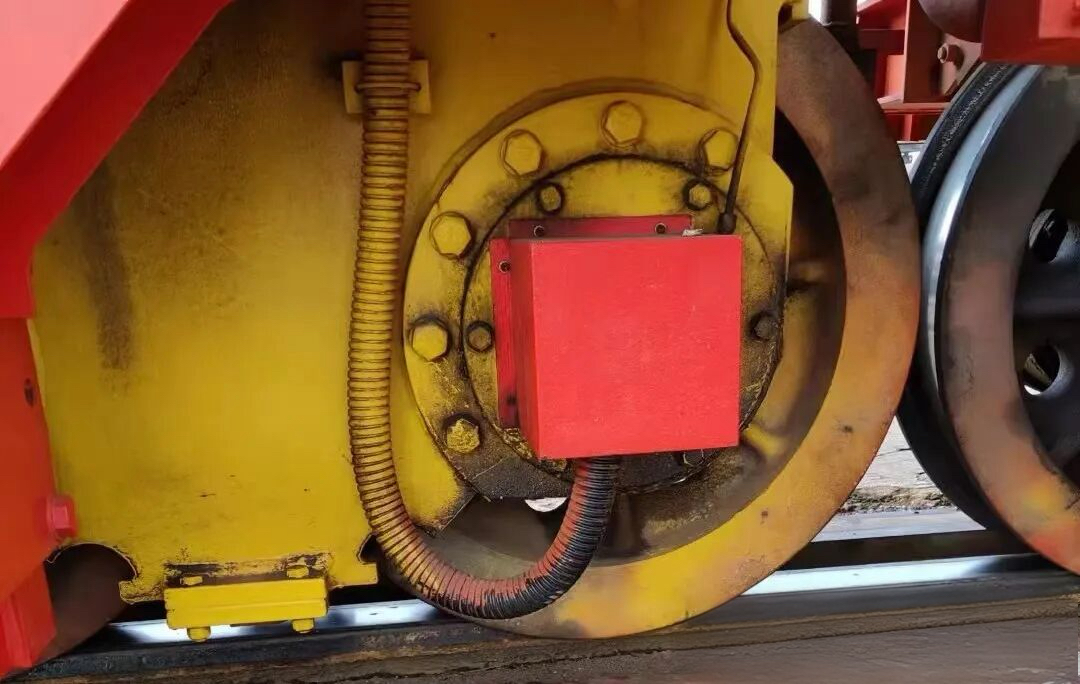

Encoder-based anti-skew systems are among the most widely used. They calculate travel distance by detecting wheel rotations and compare the positions of both sides. These systems offer a good balance of performance and cost, but their long-term reliability can be affected by wheel slippage and wear.
Magnetic nail and laser anti-skew systems represent higher-precision options. Magnetic nail systems use magnets placed along the rail for positioning but are vulnerable to contamination from iron filings. Laser systems measure distance with high accuracy and fast response but can be affected by ambient light and obstacles, making them less stable in outdoor or harsh environments.
Satellite positioning anti-skew systems have become significantly more affordable with the widespread use of BeiDou and other GNSS. Using differential positioning, these systems can theoretically achieve millimeter-level accuracy. They are particularly suitable for multiple cranes operating in the same area, where one base station can serve several cranes while also addressing collision avoidance on shared tracks.
As a company focused on crane safety and intelligence, Wuxi ChuncoTech deeply understands the real-world needs of different applications. Rather than developing entirely new technologies, we specialize in delivering mature, field-proven solutions in the form of reliable products. Our gantry crane anti-skew system primarily offers encoder-based and GNSS-based anti-skew solutions, both of which are mature technologies. We can also provide a combined configuration to ensure high adaptability and reliability in various environments.
Why Choose Wuxi ChuncoTech? Proven Products, Reliable Performance
When selecting an anti-skew solution, your top concerns are likely stability, ease of maintenance, and total cost of ownership. While Wuxi ChuncoTech does not engage in original R&D, our expertise lies in manufacturing and sales. We have in-depth knowledge of the production processes, quality control, and field applications of every product we offer.
Our strengths are built on three key pillars:
1.Mature Technology, Proven Reliability: Every crane travel anti-skew device we sell is based on technologies that have been validated in the market over time. We focus on refining our manufacturing processes to ensure that every system delivers consistent quality and long-lasting durability.
2.Flexible Configuration for Challenging Environments: Whether you operate in a clean indoor facility or a harsh outdoor environment with dust and extreme temperatures, we can recommend the most suitable anti-skew configuration. For outdoor applications prone to wheel slippage, we can offer a redundant solution combining encoder-based and GNSS-based anti-skew systems to ensure reliable gantry crane synchronization.
3.Optimized Cost, Real Value: We don’t chase premium pricing for unproven innovations. Instead, through an efficient supply chain and streamlined manufacturing, we offer cost-effective crane anti-skew systems that provide reliable performance and an optimal return on investment.
4.Comprehensive Support: From selection consulting to on-site installation and commissioning, we provide full technical support. We understand that a good automatic gantry crane anti-skew device must not only perform well but also be easy to install and adjust.
Conclusion
Choosing a gantry crane anti-skew device is ultimately about ensuring the long-term, reliable operation of your equipment. Wuxi ChuncoTech specializes in turning proven technologies into dependable products that solve your real-world challenges. Whether you need a cost-effective encoder-based anti-skew solution or a future-ready high-precision GNSS-based anti-skew solution, we offer reliable options you can trust.
